Printed Battery

Customized & Standard Printed Battery Solutions

The battery can be screen printed on paper or plastic substrate in a conventional printing environment using standard screen-printing machines.

Battery Composition Layers:

  • Silver
  • Carbon
  • Zinc
  • MnO₂
  • BatElectrolyte
  • BatBarrier 600
  • HotMeltGlue 800

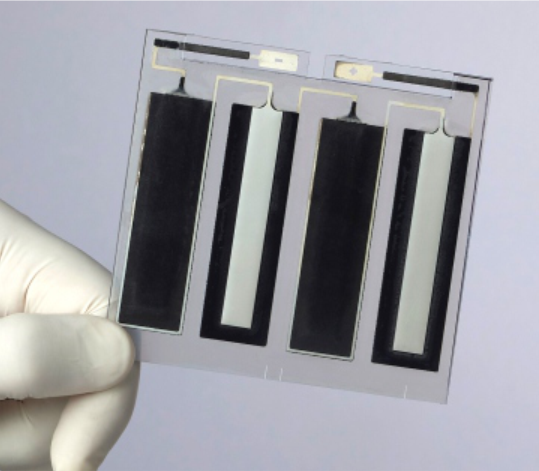

The 6 volts printed Zinc-ZnCl₂-MnO₂ battery consists of four unit cells connected in series. They can be easily connected to external circuits using conductive adhesives.

Types of Printed Batteries:

  • ZincMnO₂ flexible: Printed on blister foil, highly flexible.
  • ZincMnO₂ standard: Printed on PET foil, non-bendable.
Printed Battery
  1. Printed on paper or disposable plastic
  2. Only 7 layers of printing
  3. Energy efficient production through screen printing
  4. Lightweight
  5. No toxic chemicals in the inks
  6. Flexible
  7. Easily disposable/recyclable battery
  8. Easily disposable/recyclable battery

    Battery performance can easily be customized by changing size and thickness of the battery.

  1. Open Circuit Voltage: 1.5 – 6V
  2. Initial Short Circuit Current: 30 – 70 mA
  3. Storage Capacity: ~ 1 – 5 mAh
  1. No toxic/corrosive chemicals
  2. Energy efficient production process
  3. Possible to print on paper
  1. Limited energy storage: thick layer deposition not easy
  2. Self-discharge: Shelf life ~ 1 year
  3. Barrier substrate: Must be good barrier to water but bad barrier to hydrogen
  4. Preferred: thin and flexible materials
